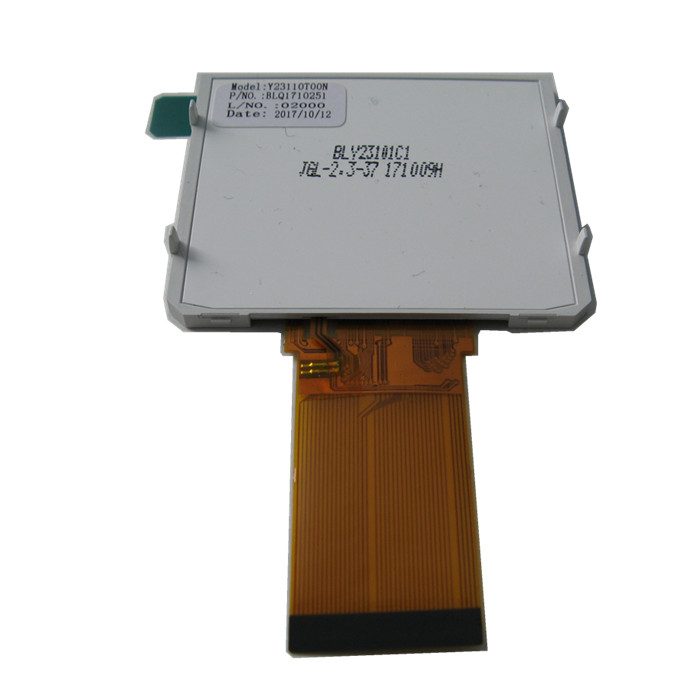

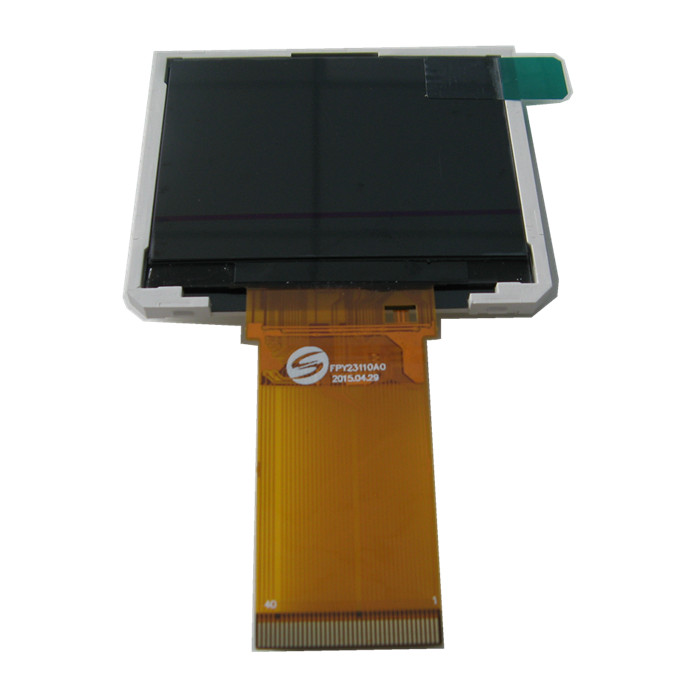

Your current position：2.31" TFT LCD SCREEN 320*240
Note: the picture of the product is for reference only. The function of the product and the setting of technical parameters need to be determined according to the specific model.
- Item Specification
- Item NO. Y23110T00N
- Type TFT
- Size 2.31 inch
- Resolution 320*240
- Interface RGB 6bit
- Brightness 260cd/m2
- Outline Dimension 54.7(H)*47.05(V)*2.72(T) mm
- Active Area 46.75(H)X35.06(V)mm
- Pin number 40
- Viewing Direction 6 o' Clock
- Operation Temperature -20℃~70℃
- Storage Temperature -30℃~80℃
This product can be used in monitor, industrial control, smart home、smart toy and other industries.
More Products：Products Catalogue
Application Specification Download：No downloads
