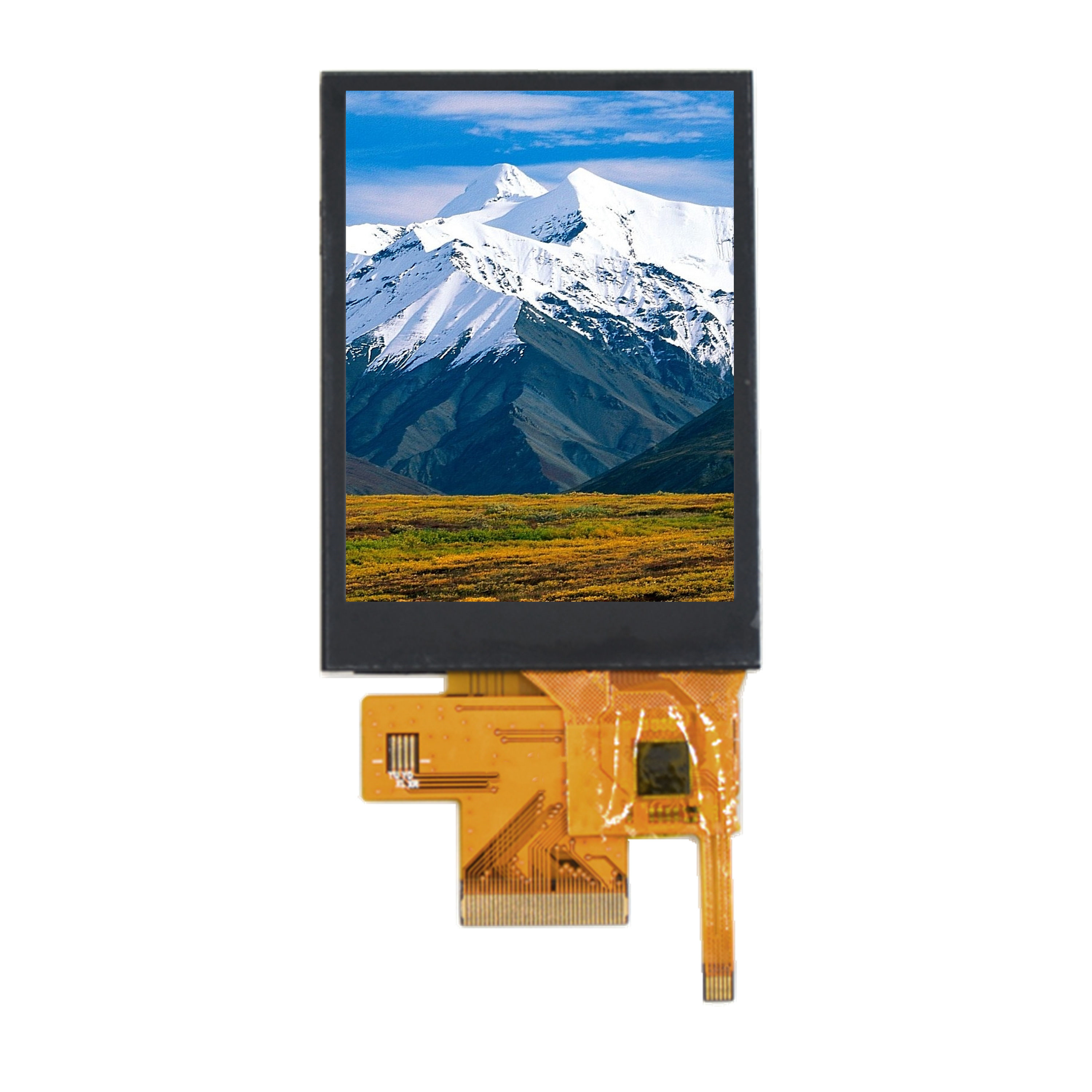

2.8” LCD Screen YC280QV005V-01K

Note: the picture of the product is for reference only. The function of the product and the setting of technical parameters need to be determined according to the specific model.

  • Item Specification
  • Item NO. YC280QV005V-01K
  • Type TFT
  • Size 2.8 inch
  • Resolution 240*320
  • Interface SPI 3/4Line
  • Touch panel interface I2C
  • Brightness 220cd/m2
  • Outline Dimension 56.00(H) * 80(V) * 4.09(T)mm
  • Active Area 43.2(H)*57.60(V)mm
  • Pin number 24
  • Viewing Direction 12 o'clock
  • Operation Temperature -20℃~70℃
  • Storage Temperature -30℃~80℃

This product can be used in monitor, industrial control, smart home and other industries.
