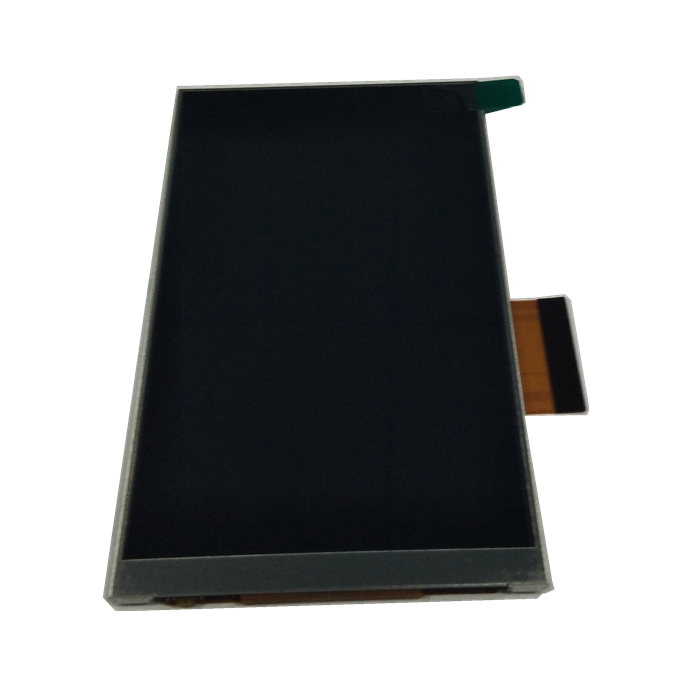

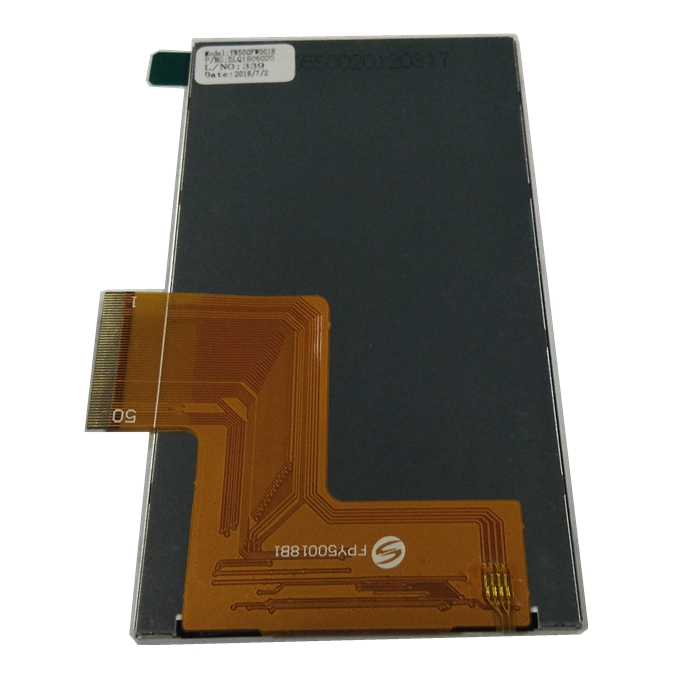

Your current position：5” TFT LCD MODULE YN500FW001H
Note: the picture of the product is for reference only. The function of the product and the setting of technical parameters need to be determined according to the specific model.
- Item Specification
- Item NO. YN500FW001H
- Used Item NO. Y50018H00N
- Type TFT
- Size 5 inch
- Resolution 480*854
- Interface 3SPI+RGB 24bit
- Brightness 450cd/m2
- Outline Dimension 66.2(H)*119.85(V)*2.2(T) mm
- Pin number 50
- Viewing Direction 6 o‘ clock
- Operation Temperature -20℃~70℃
- Storage Temperature -30℃~80℃
This product can be used in monitor, industrial control, smart home and other industries.
 |
|
 |
More Products：Products Catalogue
Application Specification Download：No downloads
