Your current position：3.5” TFT LCD SCREEN 320*240

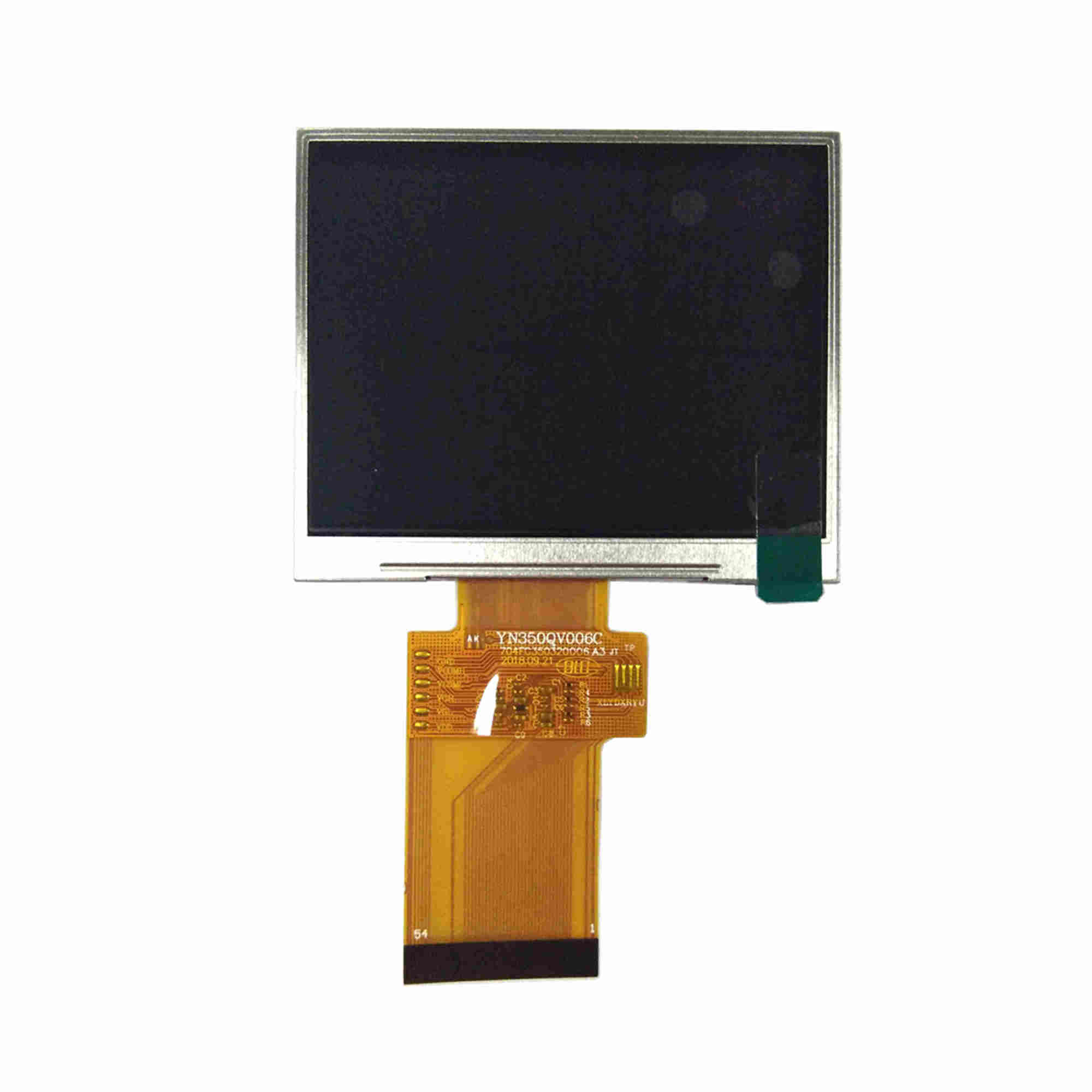

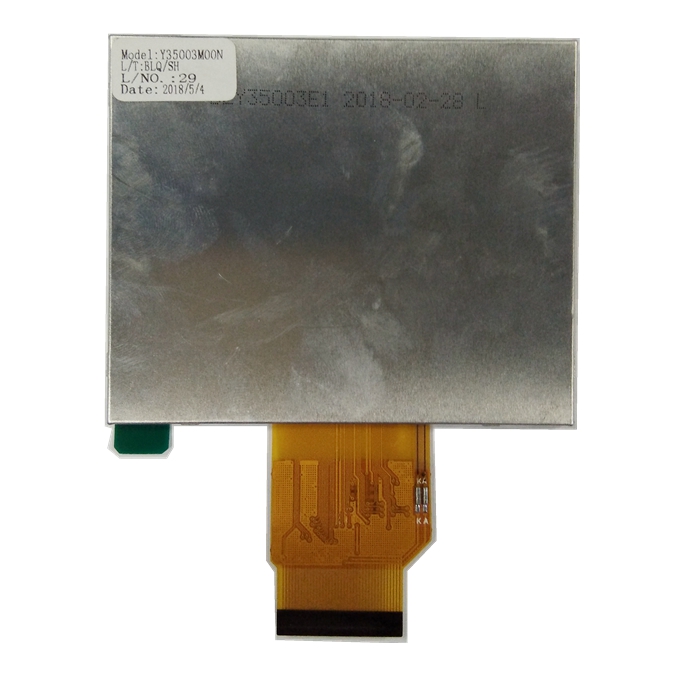

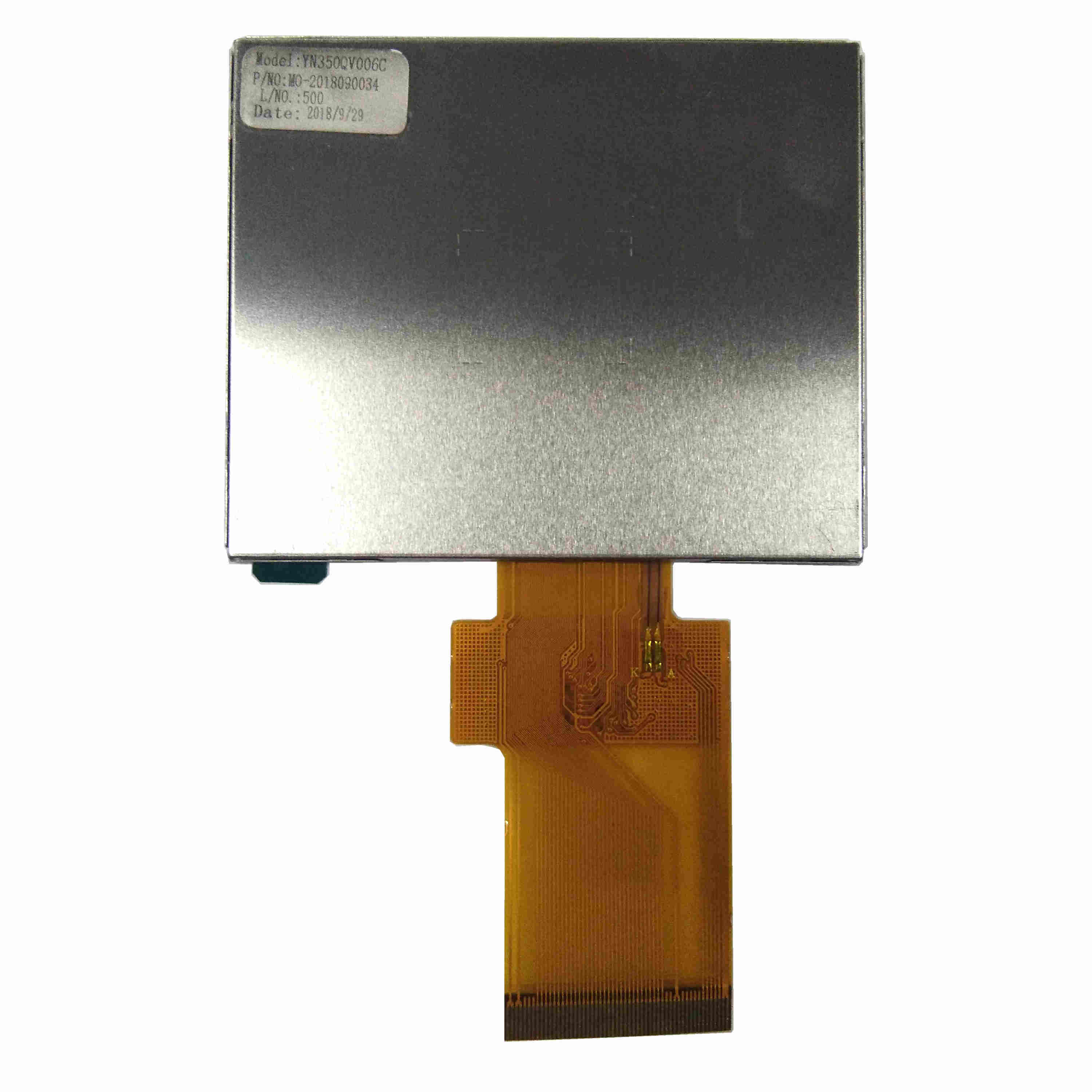

Note: the picture of the product is for reference only. The function of the product and the setting of technical parameters need to be determined according to the specific model.
- Item Specification
- Item NO. YN350QV006C
- Used Item NO. Y35007C00N
- Type TFT
- Size 3.5 inch
- Resolution 320*240
- Interface RGB 24bit
- Brightness 300d/m2
- Outline Dimension 76.84(H) * 63.84(V) * 3.27(T)mm
- Active Area 70.08(H)*52.56(V)mm
- Pin number 54
- Viewing Direction 12 o' Clock
- Operation Temperature -20℃~70℃
- Storage Temperature -30℃~80℃
This product can be used in monitor, industrial control, smart home and other industries.
 |
|
