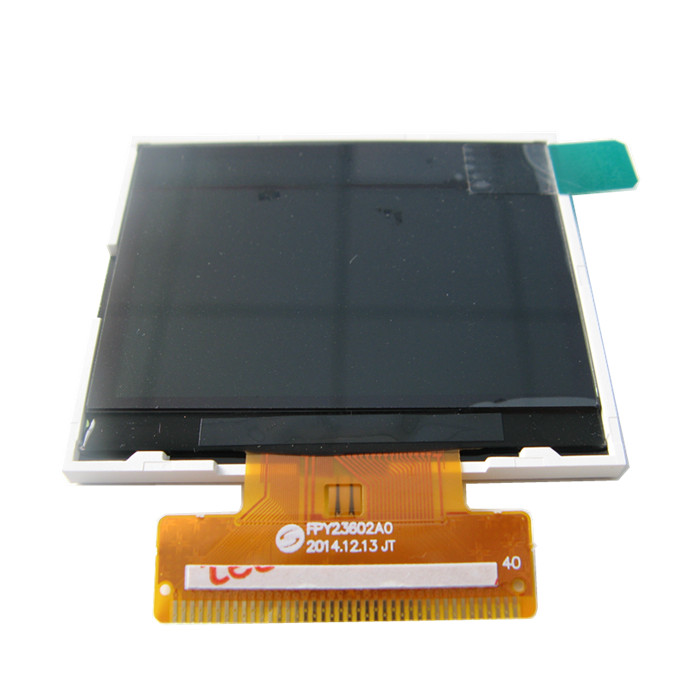

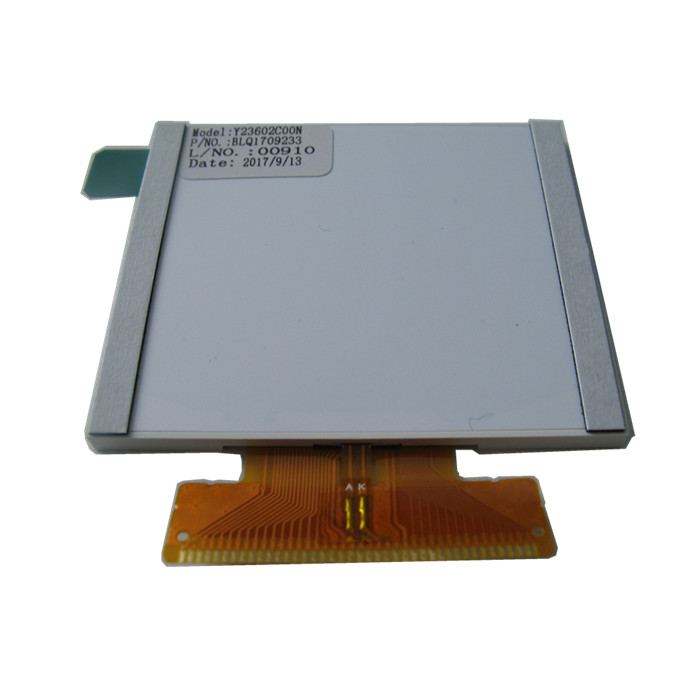

Your current position：2.36" TFT LCD SCREEN Y23602C00N
Note: the picture of the product is for reference only. The function of the product and the setting of technical parameters need to be determined according to the specific model.
- Item Specification
- Item NO. Y23602C00N
- Type TFT
- Size 2.36 inch
- Resolution 480*272
- Interface RGB 8bit
- Brightness 250cd/m2
- Outline Dimension 42.72(H)*60.26(V)*2.3(T) mm
- Active Area 46.75(H)X35.06(V)mm
- Pin number 24
- Viewing Direction 6 o' Clock
- Operation Temperature -20℃~70℃
- Storage Temperature -30℃~80℃
This product can be used in Security Monitoring and other industries.
 |
|
