Your current position：2" TFT LCD SCREEN 240*320

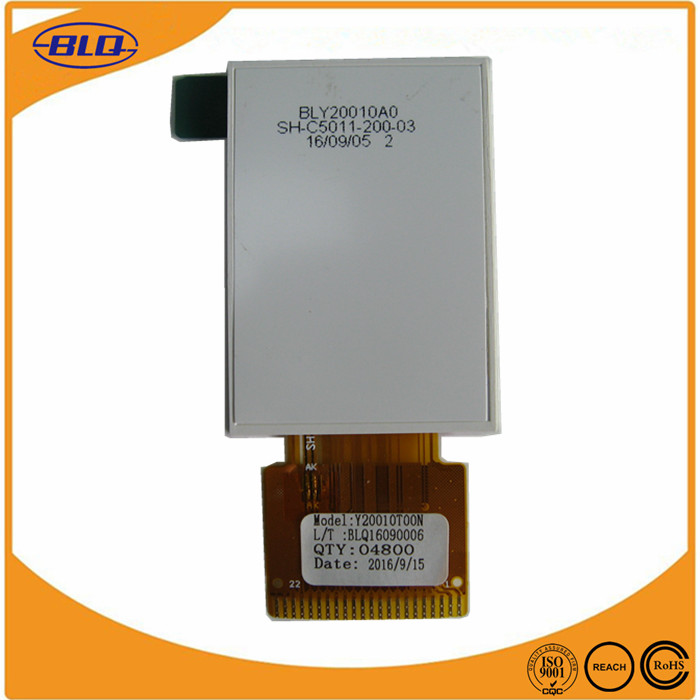

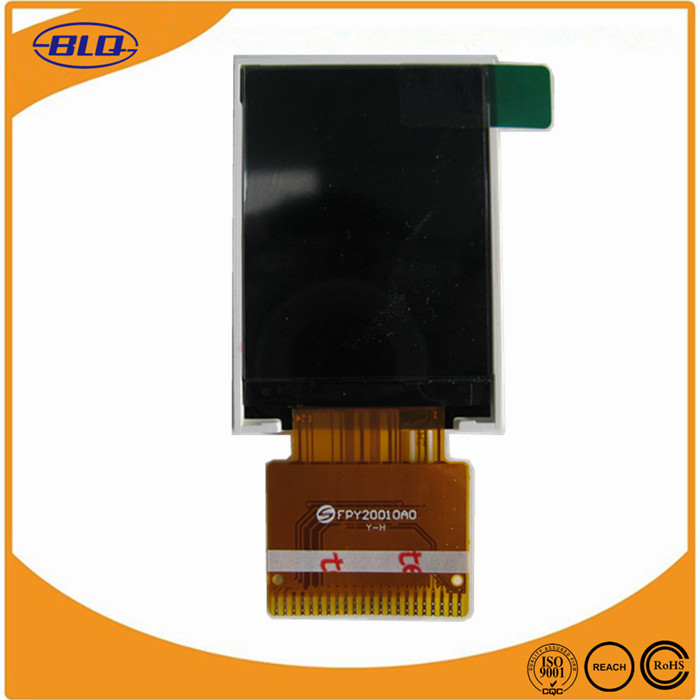

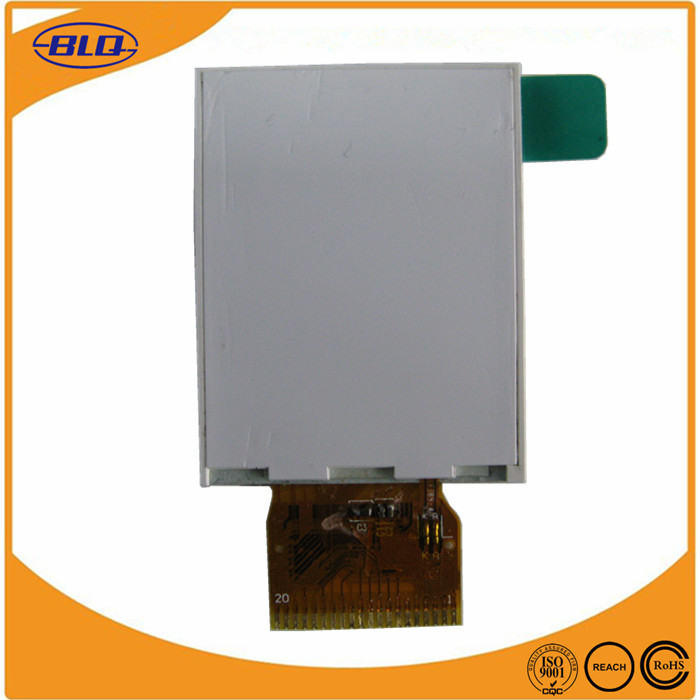

Note: the picture of the product is for reference only. The function of the product and the setting of technical parameters need to be determined according to the specific model.
- Item Specification
- Item NO. YN200QV002T
- Used Item NO. Y20010T00N
- Type TFT
- Size 2 inch
- Resolution 240*320
- Interface MCU 8bit
- Brightness 250cd/m2
- Outline Dimension 36.2(H)*51.8(V)*2.45(T) mm
- Active Area 30.6(H) * 40.8(V)mm
- Pin number 22
- Viewing Direction 6 o' Clock
- Operation Temperature -20℃~70℃
- Storage Temperature -30℃~80℃
This product can be used in Security Monitoring and other industries.
