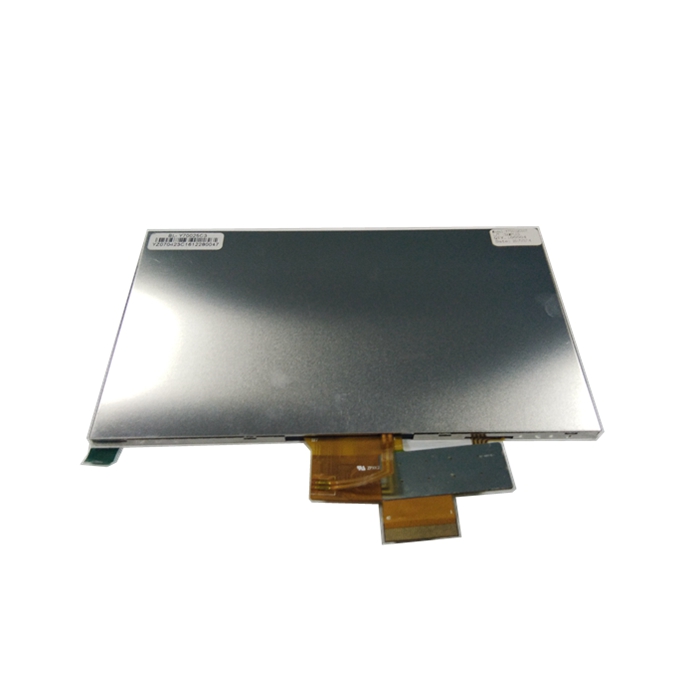

Your current position：7" RTP TFT LCD MODULE YR700WV003B-01
Note: the picture of the product is for reference only. The function of the product and the setting of technical parameters need to be determined according to the specific model.
- Item Specification
- Item NO. YR700WV003B-01
- Used Item NO. Y70025B00T
- Type TFT
- Size 7 inch
- Resolution 800*480
- Interface RGB 24 BIT
- Brightness 280 cd/m2
- Outline Dimension 163.9(H)*96.95(V)*4.3(T) mm
- Pin number 40
- Viewing Direction 6 o'clock
- Operation Temperature -20℃~70℃
- Storage Temperature -30℃~80℃
This product can be used in vehicle, industrial control, smart home and other industries.
 |
|
 |
More Products：Products Catalogue
Application Specification Download：No downloads
