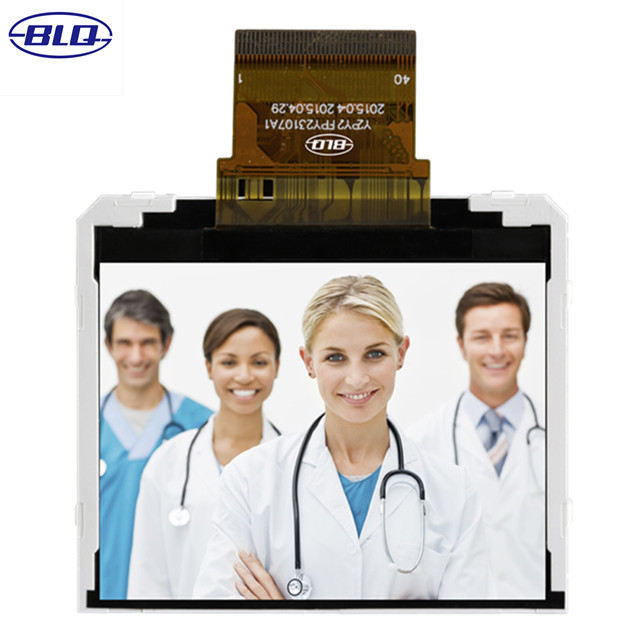

Your current position：2.31" TFT LCD SCREEN YN231QV001T
Note: the picture of the product is for reference only. The function of the product and the setting of technical parameters need to be determined according to the specific model.
- Item Specification
- Item NO. YN231QV001T
- Used Item NO. Y23107T02N
- Type TFT
- Size 2.31 inch
- Resolution 320*240
- Interface RGB 6 bit
- Brightness 220 cd/m2
- Outline Dimension 54.7(H)*47.05(V)*2.72(T) mm
- Active Area 46.75(H) * 35.06(V)mm
- Pin number 40
- Viewing Direction 12 o' clock
- Operation Temperature -20℃~70℃
- Storage Temperature -30℃~80℃
This product can be used in baby monitor, industrial control, smart home and other industries.
 |
|
|
More Products：Products Catalogue
Application Specification Download：No downloads
