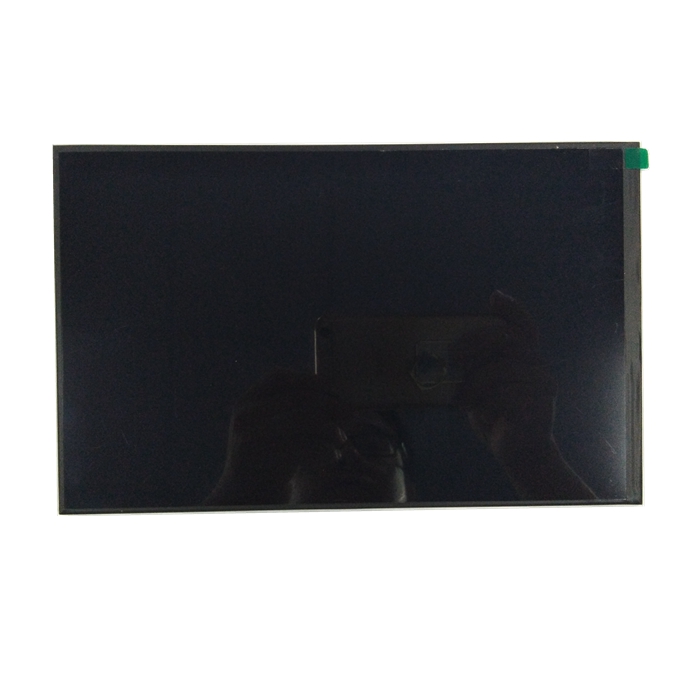

Your current position：10.1" IPS TFT LCD SCREEN YNA10HD002B
Note: the picture of the product is for reference only. The function of the product and the setting of technical parameters need to be determined according to the specific model.
- Item Specification
- Item NO. YNA10HD002B
- Used Item NO. YA1042B00N
- Type TFT
- Size 10.1 inch
- Resolution 800*1280
- Interface MIPI 4Line
- Brightness 260cd/m2
- Outline Dimension 143(H)*228.6(V)*2.6(T) mm
- Pin number 40
- Viewing Direction ALL
- Operation Temperature -20℃~70℃
- Storage Temperature -30℃~80℃
This product can be used in Tablet,vehicle, industrial control, medical, smart home and other industries.
