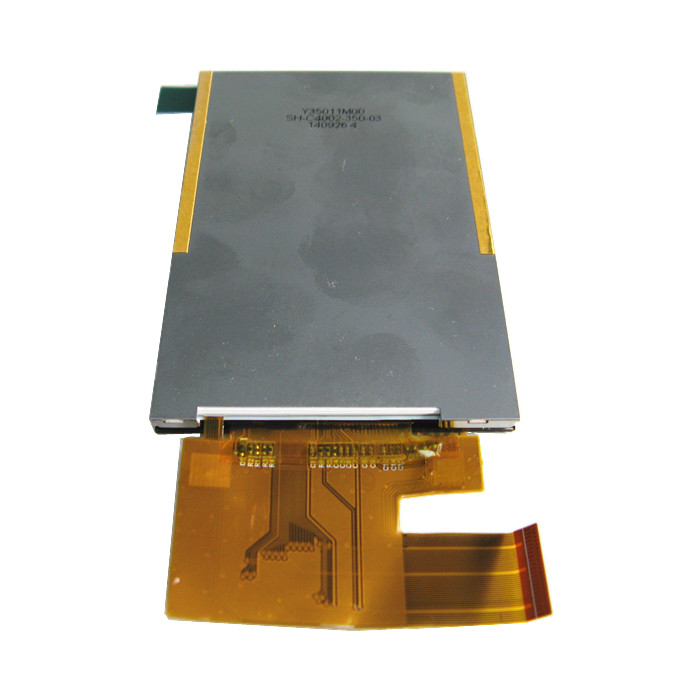

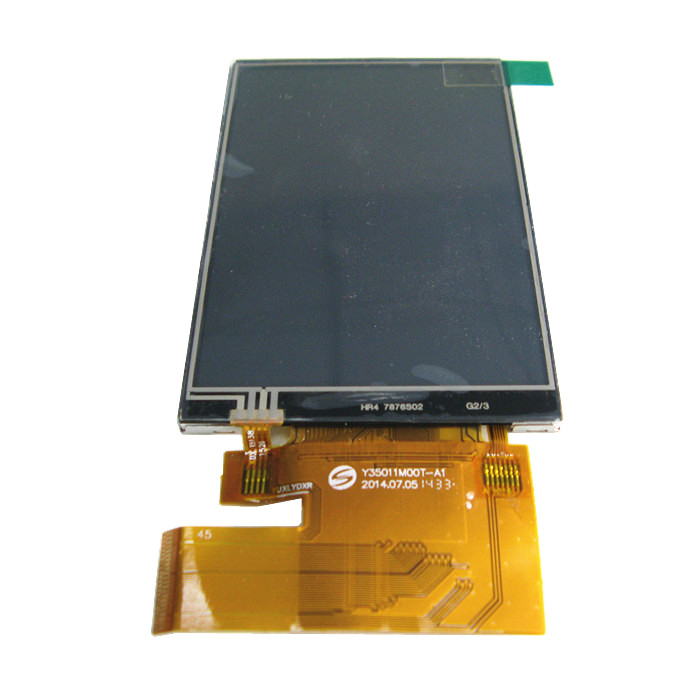

Your current position：3.5" TFT LCD SCREEN YR350HV001E-01
Note: the picture of the product is for reference only. The function of the product and the setting of technical parameters need to be determined according to the specific model.
- Item Specification
- Item NO. YR350HV001E-01
- Used Item NO. Y35031M00T
- Type TFT
- Size 3.5 inch
- Resolution 320*480
- Interface RGB 18Bit
- Brightness 350cd/m2
- Outline Dimension 54.48(W) * 84.71(H) * 3.0(T) mm
- Active Area 48.96(W) * 73.44(H)mm
- Pin number 45
- Viewing Direction 6 o'clock
- Touch Panel RTP
- Operation Temperature -20℃~70℃
- Storage Temperature -30℃~80℃
This product can be used in monitor, industrial control, smart home and other industries.
 |
|
