Your current position：4.5" TFT LCD SCREEN 480*854

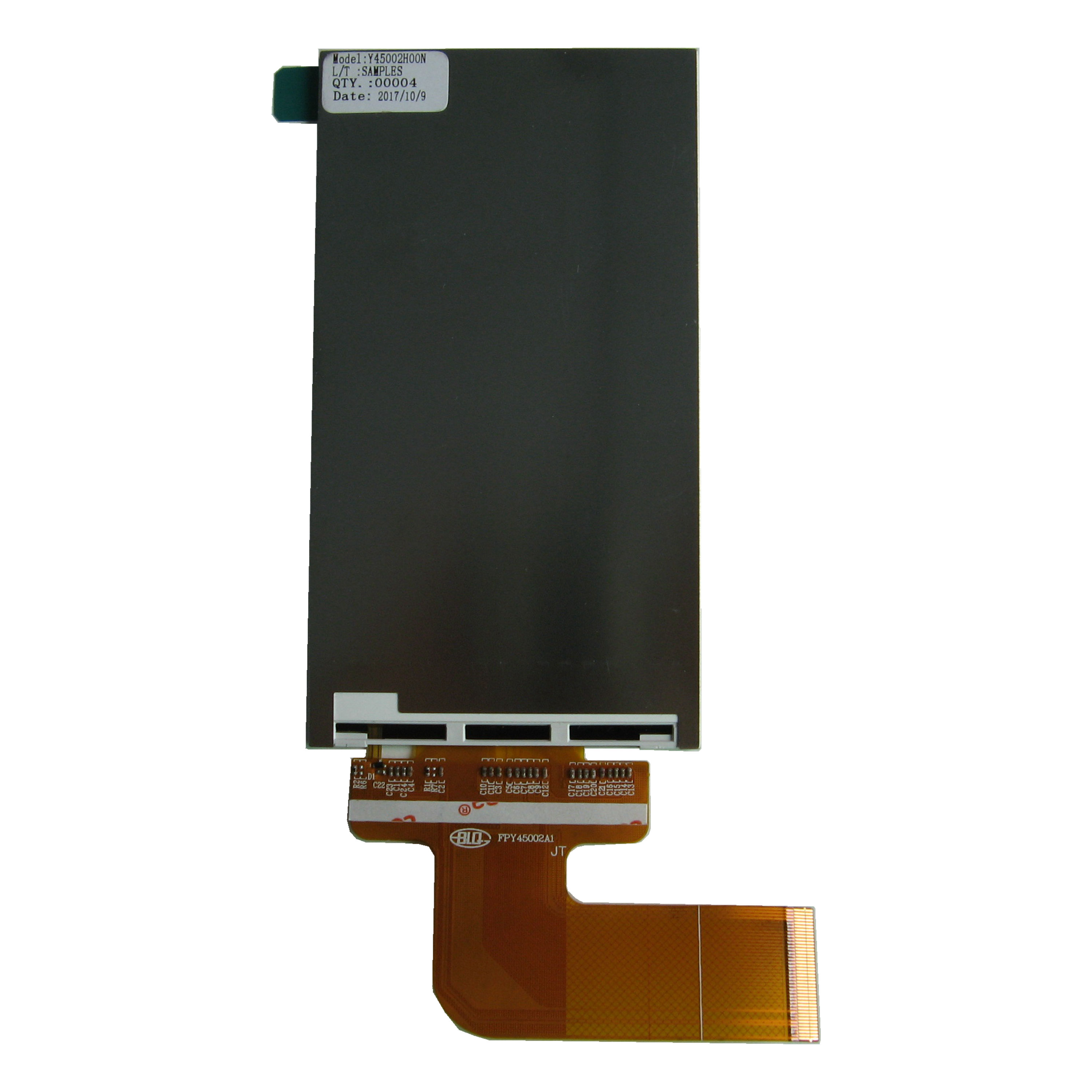

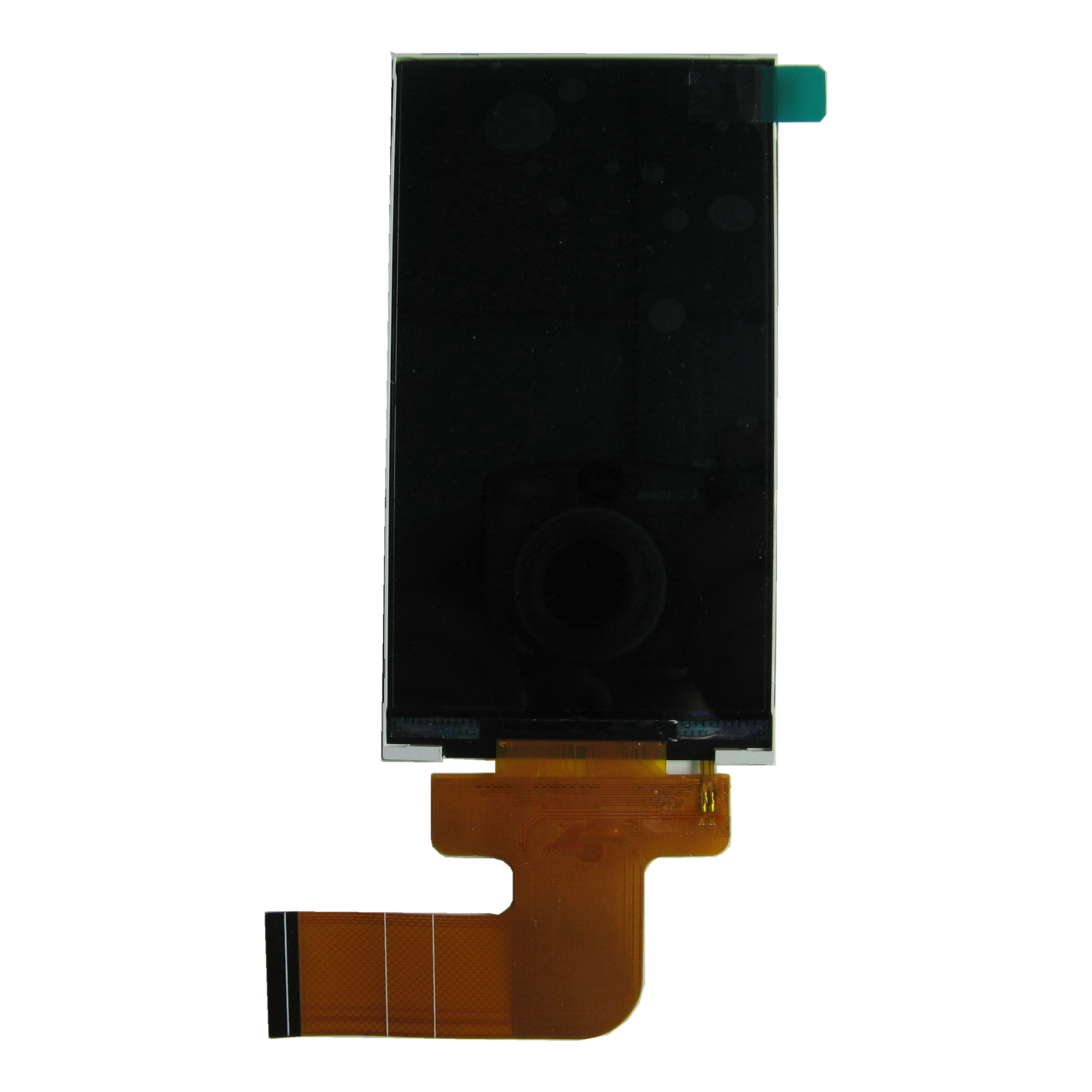

Note: the picture of the product is for reference only. The function of the product and the setting of technical parameters need to be determined according to the specific model.
- Item Specification
- Item NO. YN450FW001N
- Type TFT
- Size 4.5 inch
- Resolution 480*854
- Interface MIPI 4-LINE
- Brightness 340cd/m2
- Outline Dimension 110.13(H) * 60.23(V) * 2.2(T) mm
- Active Area 55.4(H)*98.64(V)mm
- Pin number 40
- Viewing Direction IPS
- Operation Temperature -20℃~70℃
- Storage Temperature -30℃~80℃
This product can be used in industrial control, smart home and other industries.
 |
|
 |
More Products：Products Catalogue
Application Specification Download：No downloads
