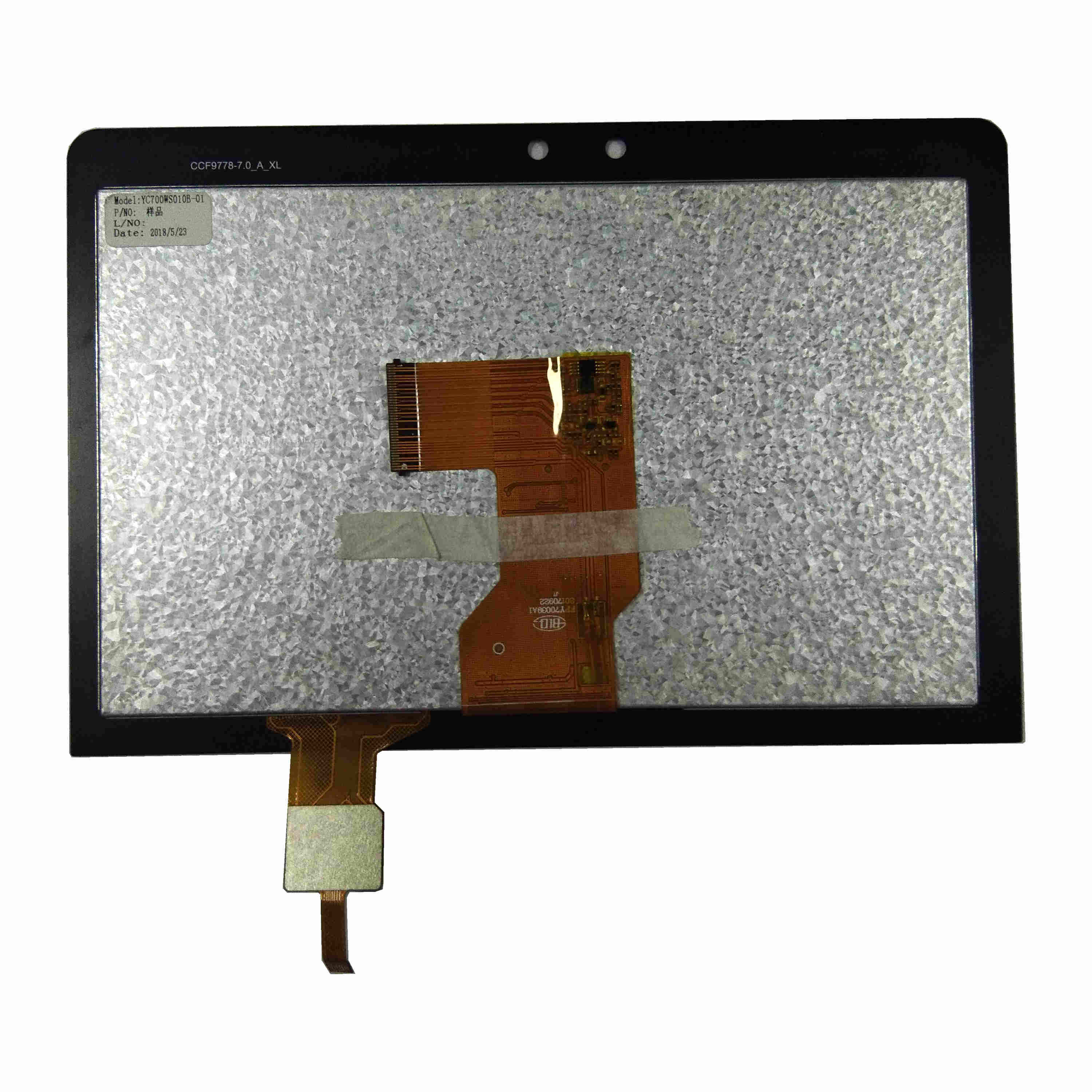

Your current position：7" CTP LCD SCREEN YC700WS010B-01
Note: the picture of the product is for reference only. The function of the product and the setting of technical parameters need to be determined according to the specific model.
- Item Specification
- Item NO. YC700WS010B-01
- Type TFT
- Size 7 inch
- Resolution 1024*600
- Interface LVDS
- Brightness 300 cd/m2
- Outline Dimension 181.6(H) * 120.4(V) * 5.25(T) mm
- Active Area 154.08H)*85.92(V)mm
- Pin number 40
- Viewing Direction IPS
- Operation Temperature -20℃~70℃
- Storage Temperature -30℃~80℃
This product can be used in Consumer electronic, Industrial control, Smart home and other industries.
 |
|
