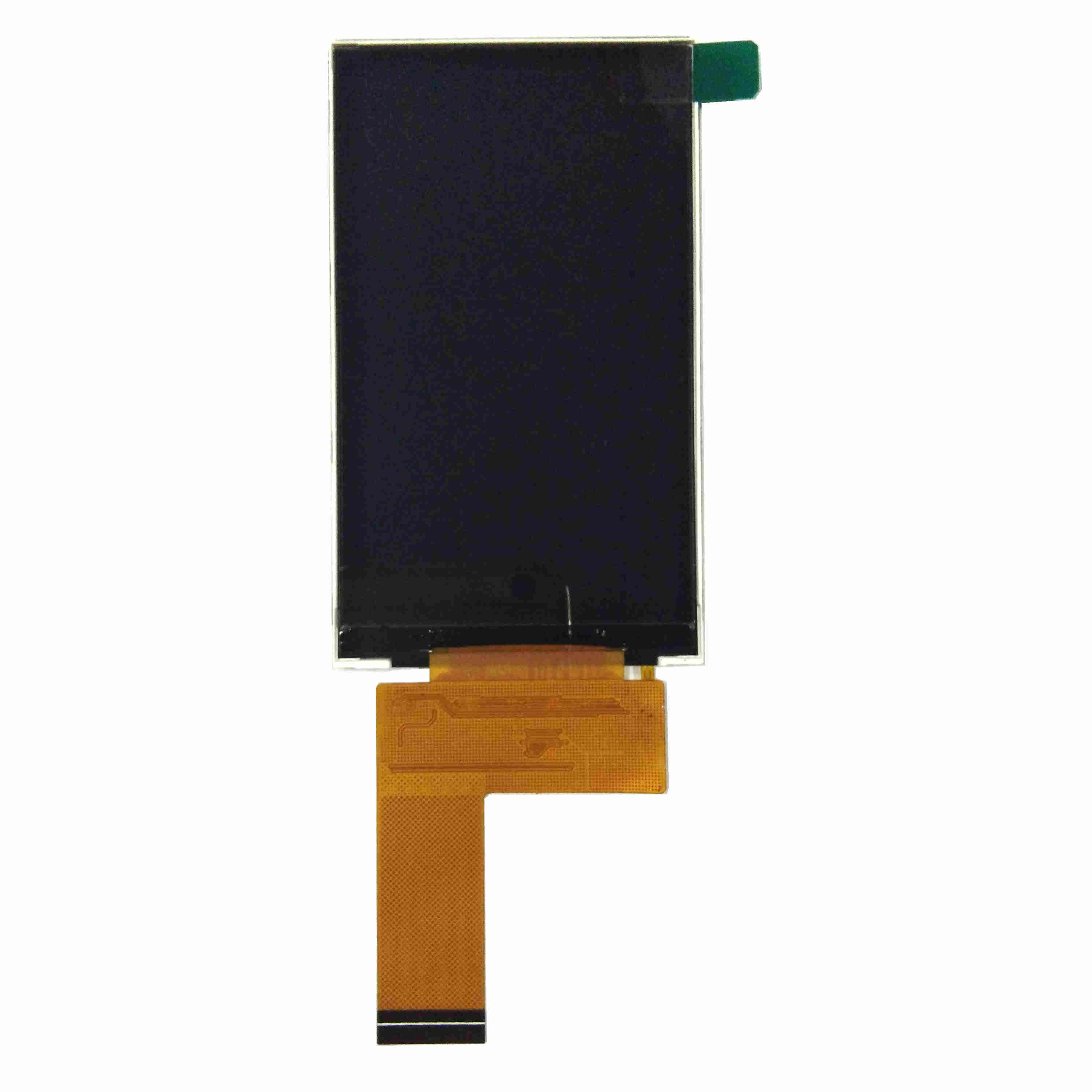

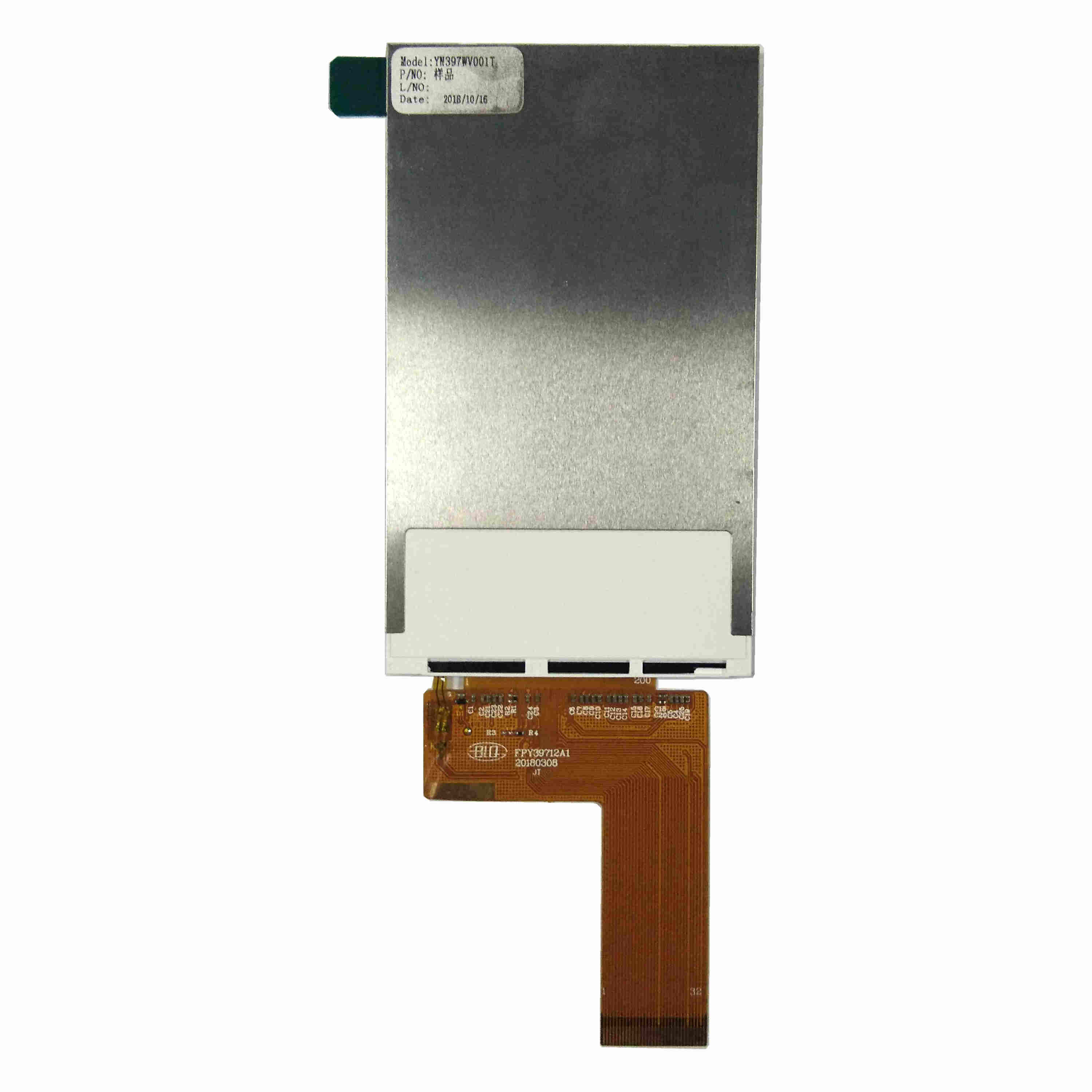

Your current position：4" TFT LCD SCREEN 480*800
Note: the picture of the product is for reference only. The function of the product and the setting of technical parameters need to be determined according to the specific model.
- Item Specification
- Item NO. YN397WV001T
- Type TFT
- Size 3.97 inch
- Resolution 480*800
- Interface 3 SPI+16 RGB
- Brightness TBD cd/m2
- Outline Dimension 57.14(H) *96.85(V) * 2.3(T) mm
- Active Area 51.84(H)*86.40(V)mm
- Pin number 40
- Viewing Direction IPS
- Operation Temperature -20℃~70℃
- Storage Temperature -30℃~80℃
This product can be used in Industrial control, Sport devices and other industries.
 |
|
 |
More Products：Products Catalogue
Application Specification Download：No downloads
